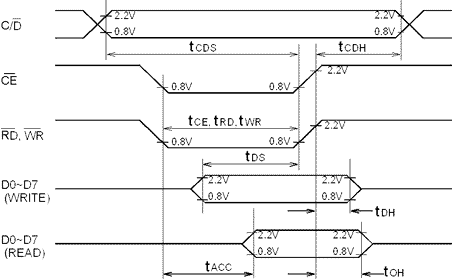

MPU Interface Timing (MPU - T6963C)
| Item | Symbol | Min | Typ | Max | Unit |
|---|---|---|---|---|---|
| C / (Not) D - Set Up Time | tCDS | 100 | - | - | ns |
| C / (Not) D - Hold Time | tCDH | 10 | - | - | ns |
| Not CE, Not RD, Not WR - Pulse Width | tCE, tRD, tWR | 80 | - | - | ns |
| Data Set Up Time | tDS | 80 | - | - | ns |
| Data Hold Time | tDH | 40 | - | - | ns |
| Access time | tACC | - | - | 150 | ns |
| Output Hold Time | tOH | 10 | - | 50 | ns |
